HAMAI 60SP
가격 협의
helix angle ±45°
Max. hobbed diameter (mm) 60
Max. hobbed length (mm) 150
Max. work length (mm) 200
Max. module (m) 2.0
Number of teeth (Z) 3-130 (6-325)
Applicable max. hob (ID) (mm) Φ50(10)
Hob speed (variable) 238-1,430(50Hz)
Cutting feed (mm/rev) 0.1-1.5
Hob Shift travle (mm) 30
Main motor (kw) 1.5
Total power (KVA) 4
Floor area x height (mm) 1260*1200*1900
Machine weight (kgf) 1500
Max. hobbed diameter (mm) 60
Max. hobbed length (mm) 150
Max. work length (mm) 200
Max. module (m) 2.0
Number of teeth (Z) 3-130 (6-325)
Applicable max. hob (ID) (mm) Φ50(10)
Hob speed (variable) 238-1,430(50Hz)
Cutting feed (mm/rev) 0.1-1.5
Hob Shift travle (mm) 30
Main motor (kw) 1.5
Total power (KVA) 4
Floor area x height (mm) 1260*1200*1900
Machine weight (kgf) 1500

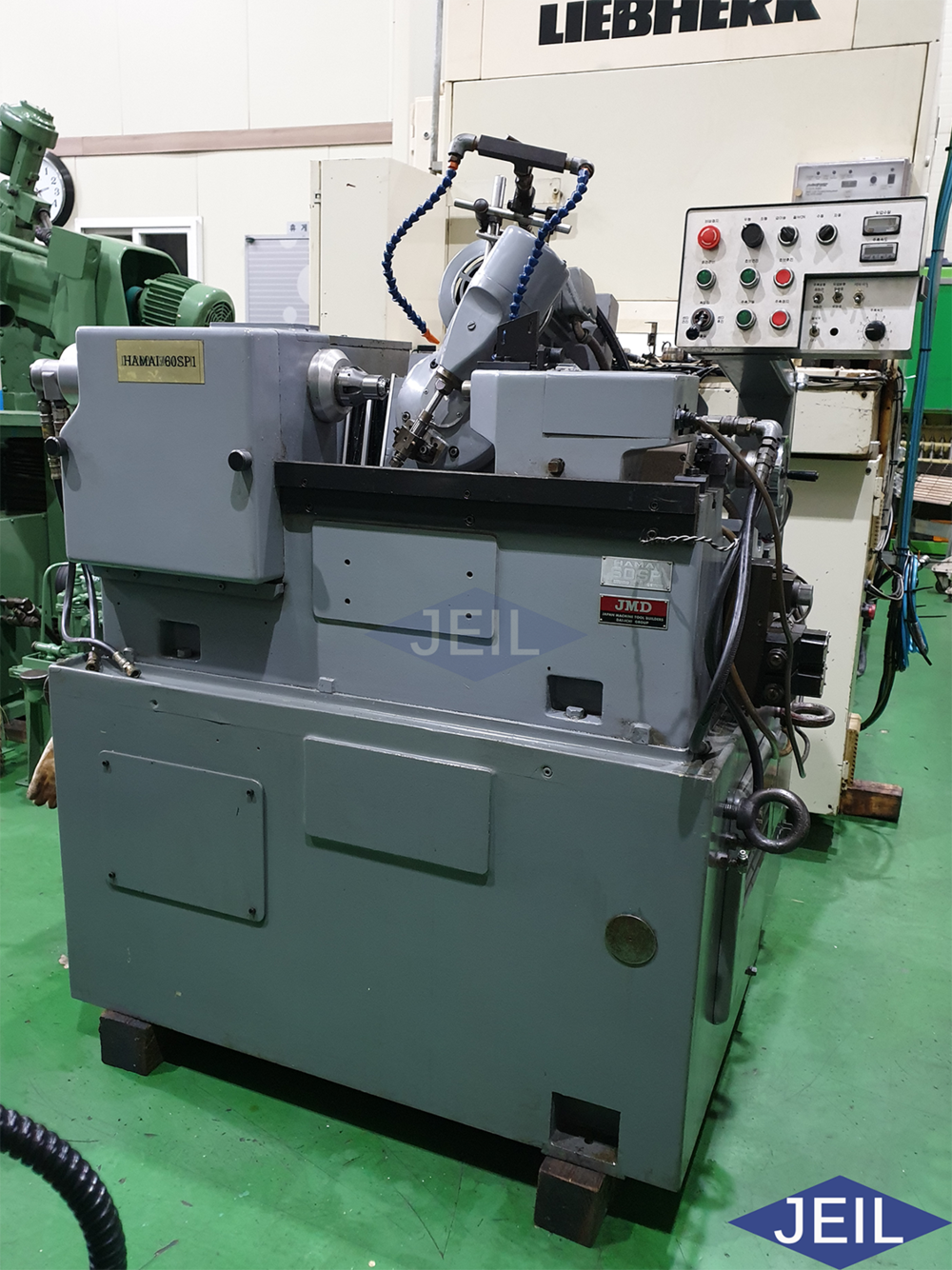

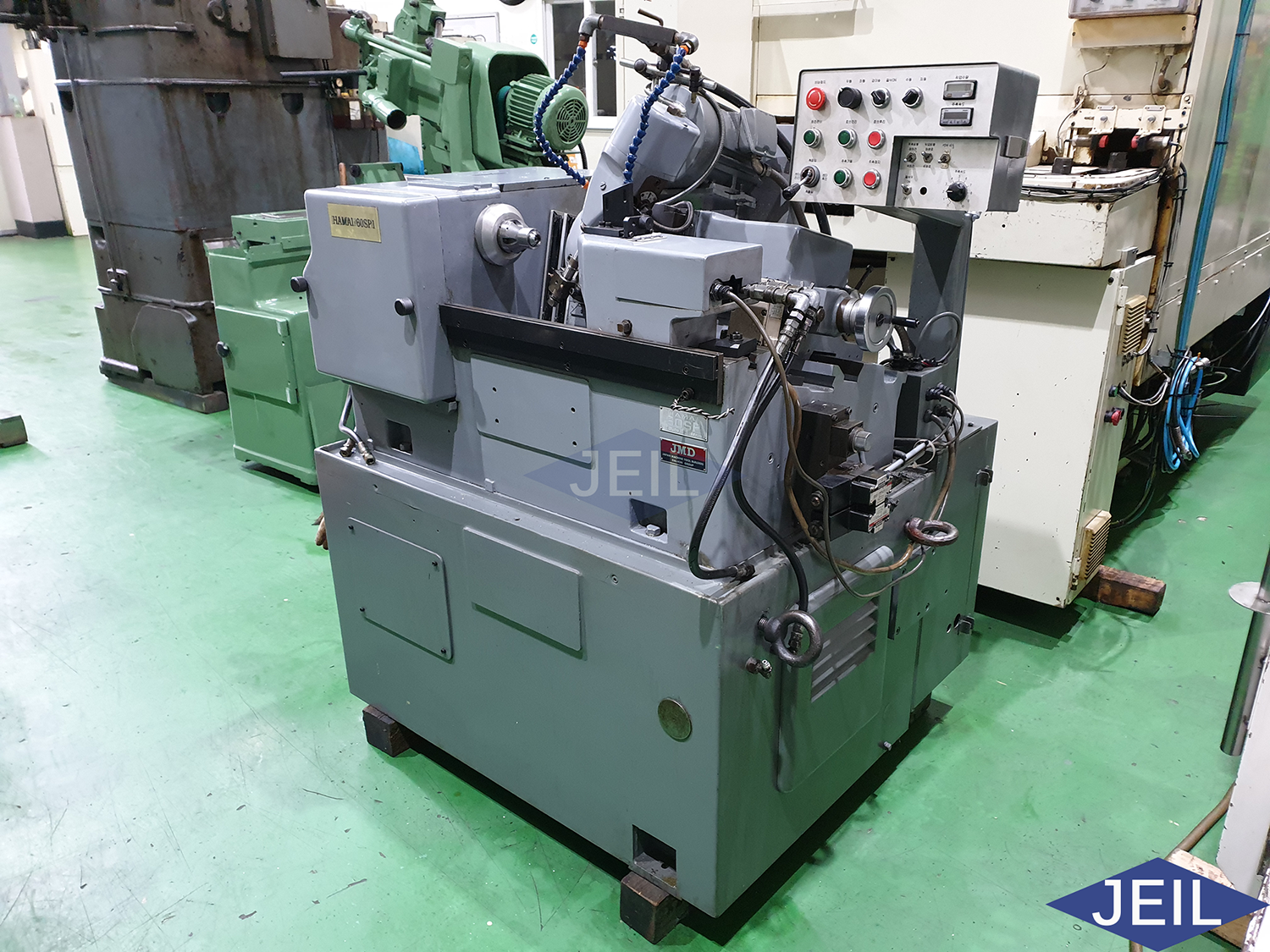

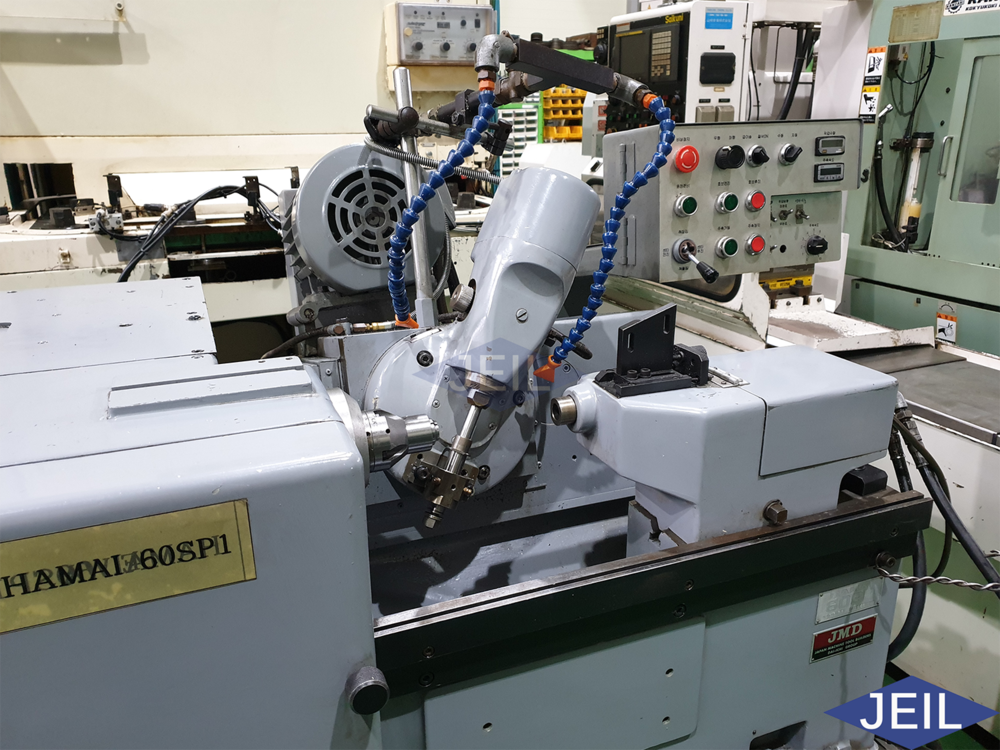

HAMAI GEAR HOBBING MACHINE
60SP
helix angle ±45°
Max. hobbed diameter (mm) 60
Max. hobbed length (mm) 150
Max. work length (mm) 200
Max. module (m) 2.0
Number of teeth (Z) 3-130 (6-325)
Applicable max. hob (ID) (mm) Φ50(10)
Hob speed (variable) 238-1,430(50Hz)
Cutting feed (mm/rev) 0.1-1.5
Hob Shift travle (mm) 30
Main motor (kw) 1.5
Total power (KVA) 4
Floor area x height (mm) 1260*1200*1900
Machine weight (kgf) 1500
